Fiesta

R0.00

The Fiesta is a peaked modular framed structure that can handle extreme weathers

This is not an order. Add to cart and complete the checkout process to receive a quotation.

Quotes in 12 hours

  • Check Mark Satisfaction Guaranteed
  • Check Mark Excellent Quality
  • Check Mark Build to Last
  • Check Mark Made In SA
SKU: Fiesta Categories: , Tag:

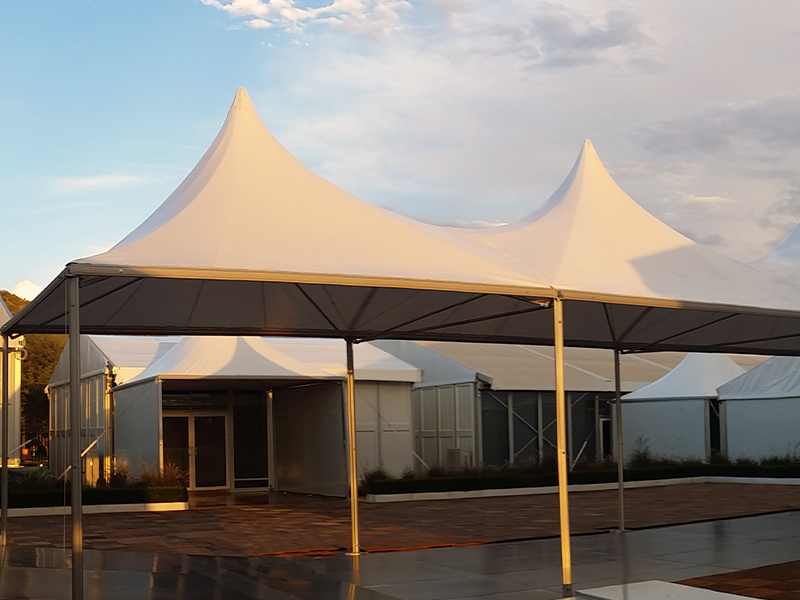

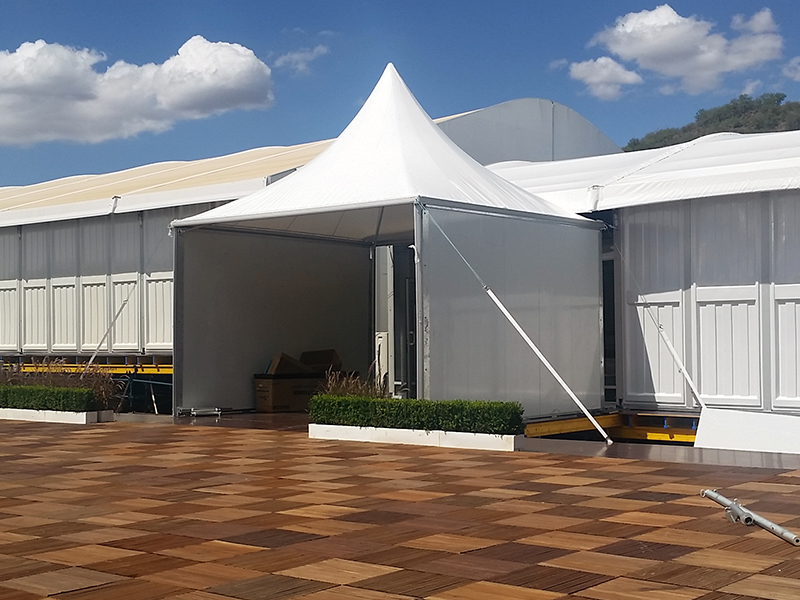

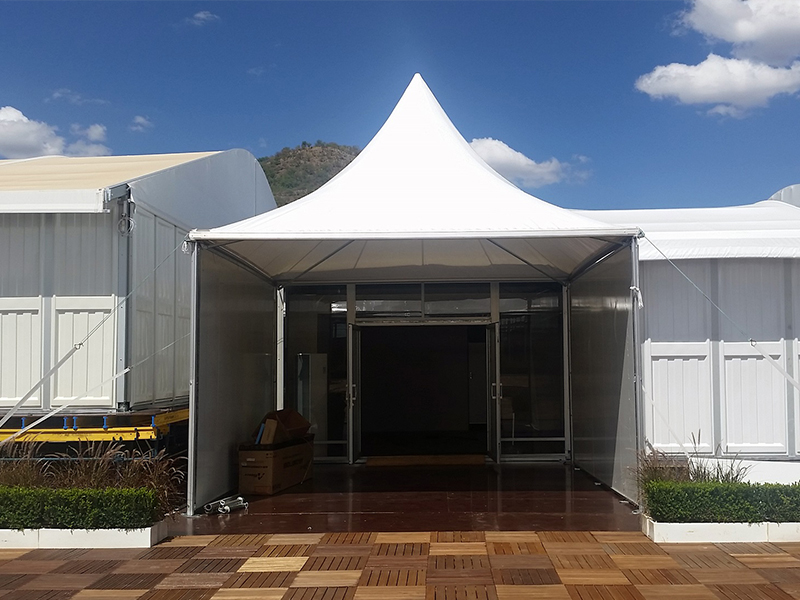

The MTT Fiesta is a peaked modular frame structure designed with our newly developed aluminium extrusion. The frame is covered with a PVC coated polyester, the roof being patterned into a tensile cone. The cone is held up by 4 rafters attached to the corners of the frame with an adjustment in the center. The walling slides as curtains so there is no need to unhook or dismantle them. The roof structure and fabric is assembled on the ground for ease of erection then hoisted onto the split uprights. When fully erected it becomes a very sturdy structure. There is provision for joining the structures together with a water proof guttering system. The patterned roof minimises flapping, thereby lowering the noise factor. The new aluminium extrusion does away with the tedious job of having to tie the fabric to the frame, it just slides into the extrusion in the aluminium making a neater and quicker attachment.

Framework
Modular aluminium alloy extruded frame structure. Main pole (floating) supported by two diagonal cables

Fabric
PVC coated polyester fabric

Fabric Options
700gsm Translucent (std. no lacquer)

700gsm Translucent and 780gsm Block-out, UV, FR, AF, (acrylic coated one side)

840gsm Block-out, UV, FR, AF,(acrylic coated both sides)

Walling Options
PVC walling, slides as curtains

Fiesta comes in standard sizes of;
These are extendable or modular structures ;

3m x 3m

4m x4m

5m x 5m

Weddings, offices, exhibitions, large events.
